Dingo Series

Excavating. Material handling. Grading. The Dingo® TX series of compact loaders has you covered. No need for separate machines to unload, haul, dig and place material; the Dingo® TX series of compact loaders can do it all. With the benefits of a compact utility loader, mini excavator and compact track loader rolled into one piece of equipment, it’s a smart solution that’s in a category of its own.

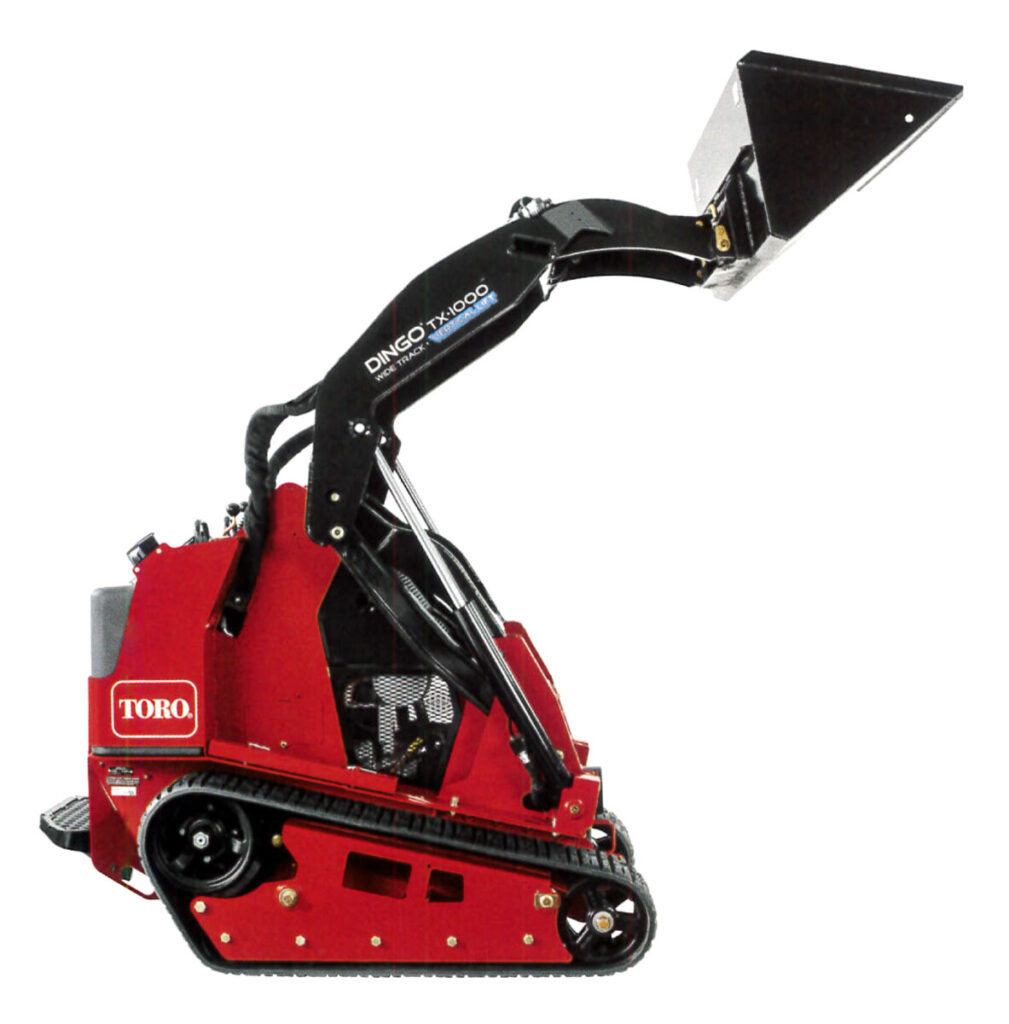

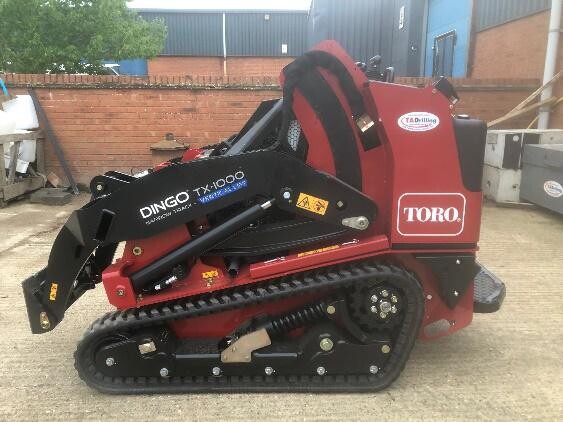

Dingo TX1000 Narrow and Wide Track

May also be available in our Pre-Owned section, please click here

Specification

Engine25 HP (18.6 kW) Engine Kubota® D1305 Diesel
Ground Clearance15 cm
Ground PressureNarrow track 0.39 bar (5.6psi) Wide track 0.25 bar (3.6psi)
Ground SpeedNarrow track 0 to 3.8 mph Wide track 4.7mph
Height135 cm
Hinge Pin Height206 cm
Overall widthNarrow track – 86cm Wide track – 104cm
Length256 cm
WeightNarrow track – 1263Kg Wide track 1266Kg
Tip Capacity694 kg
Operating Capacity (Rated at 35%)Narrow track – 1296Kg Wide track 1393Kg
Flow and pressure57.5 L/min @ 3000Psi

Description

As the market leader, Toro has taken another giant step in innovation, performance and versatility with the Dingo® TX 1000. Designed with innovative lift loader arms, its 1,000-lb. rated operating capacity delivers performance that’s an industry game-changer. The Dingo TX 1000 also offers increased reach at full height for maximum job site productivity. And speaking of productivity, an 81″ (206 cm) hinge pin height allows the arms to clear the side of a 30-yard dumpster or one-ton truck. This lightweight, manoeuvrable machine packs unmatched strength and reach in a compact package forth ultimate working advantage.

Diesel. Done Right. Our diesel Dingo TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 52.2 L/min and pumping 18.6 kW (25 hp) to the attachments, yet has a ground pressure as low as 0.36 bar (5.2 psi). And because they’re part of the full-line family, these diesels are compatible with all of Toro’s compact utility loader attachments.

Features

4-Pump Hydraulic System

4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it.

Exclusive TX Track Drive

Low centre of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tyre ruts and flat tyres.

Liquid-Cooled Diesel Engine

The 18.6 kW (25 hp) Kubota diesel engines torque curve combined with the added auxiliary hp provide attachments the added power tough jobs require.

Compact Size

Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labour. Plus it provides zero radius turn capability for unmatched manoeuvrability.

Ease of use

The TX427 goes everywhere you need it to go: residences, cemeteries, golf courses, sports fields, office and apartment complexes, parks, and more.

Hydraulic Power

Up to 34 L/min at 207 bar hydraulic system gives you incredible hydraulic power to auger up to 76 cm holes or trench 91 cm deep.

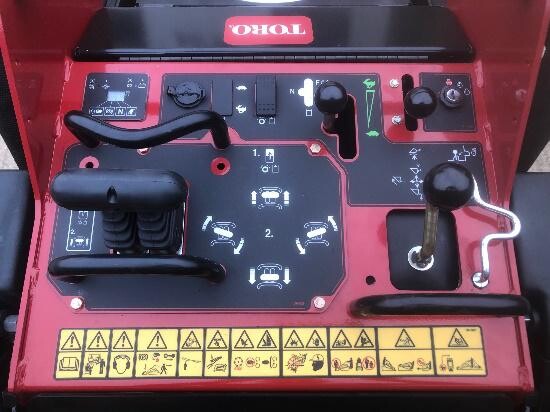

Simple Controls

You’re up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms – all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.
