Dingo Series

Excavating. Material handling. Grading. The Dingo® TX series of compact loaders has you covered. No need for separate machines to unload, haul, dig and place material; the Dingo® TX series of compact loaders can do it all. With the benefits of a compact utility loader, mini excavator and compact track loader rolled into one piece of equipment, it’s a smart solution that’s in a category of its own.

Dingo TX1300New

May also be available in our Pre-Owned section, please click here


Engine37 HP (27 kW) Yanmar® diesel
Ground Clearance15 cm
Ground Pressure5.5psi
Ground Speed4.7mph (7.6km/h)
Height143.5 cm
Hinge Pin Height89.4″ (227 cm) – retracted 109.2″ (277.4 cm) – extended
Overall width116.8cm
Length215.6 cm
Tip Capacity1685 kg
Operating Capacity (Rated at 35%)Narrow track – 1296Kg Wide track 1393Kg
Flow and pressure54.1 L/min @ 3000Psi


Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26″ of reach, and the telescoped hinge-pin height of 109″ means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.


The Toro Dingo TX 1300 Compact Track Utility Loader brings a new combination of power, reach, and convenient control to the Toro Dingo lineup. When you have a lot of material to move, the Dingo TX 1300 provides the power to do it efficiently. It’s ideal for landscape, hardscape, and tree care jobs, though its versatility allows it to be used for more.

The Dingo TX 1300 features an exclusive INTELLISCOPE loader arm with SmartLoad technology, giving the operator an additional 26-inches of reach. An impressive hinge-pin height of 109-inches allows for loads to be lifted up and over the side of a dumpster or truck. The goal of these features is to help users reach maximum productivity.

Toro has integrated the hydraulics and loader arm functions into one thumb-operated controller for easier, more accommodating operation. One hand can be used to operate the loader arm and auxiliary attachments, and the other to operate the Toro patented traction controls, making it more manageable to pick, place, and dump loads.

“The versatility of a machine can make or break a rental decision. The Dingo TX 1300 can be used for many types of jobs and purposes, giving it an edge over other specialized machinery,” says Jay Thaker, marketing manager at Toro. “It also has a 37-horsepower Yanmar Tier IV diesel engine and 1,300 pounds of rated operating capacity, proving its power and strength.”

Customers will also appreciate the pressure-relieving quick coupler system, which makes connecting attachments easier, along with a larger operator platform for increased operator comfort. All these features are combined into a compact footprint that’s maneuverable in tight spaces, helping to get the job done more efficiently.

The new Dingo TX 1300 will be available starting in Winter 2021.

Download brochure >


Let us give you a call back to answer all your questions.

Fill out the call me back form or contact us

Please call me back.

    By submitting this form you consent to be contacted by TA Drilling using the details provided.

    Related Products

    E-Dingo 500 Wheeled

    Find out more

    Dingo TX323

    Find out more

    Dingo TX427

    Find out more

    Dingo TX525

    Find out more

    Dingo TX700

    Find out more

    Dingo TX1000

    Find out more

    Dingo TX1300

    Find out more

    Pedestrian Trencher – TRX16

    Find out more

    Pedestrian Trencher – TRX250

    Find out more

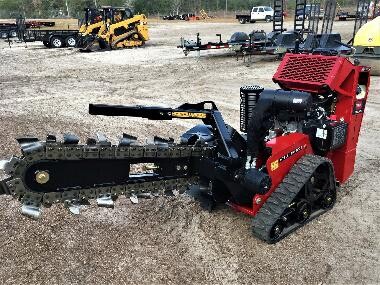

    Pedestrian Trencher – TRX300
