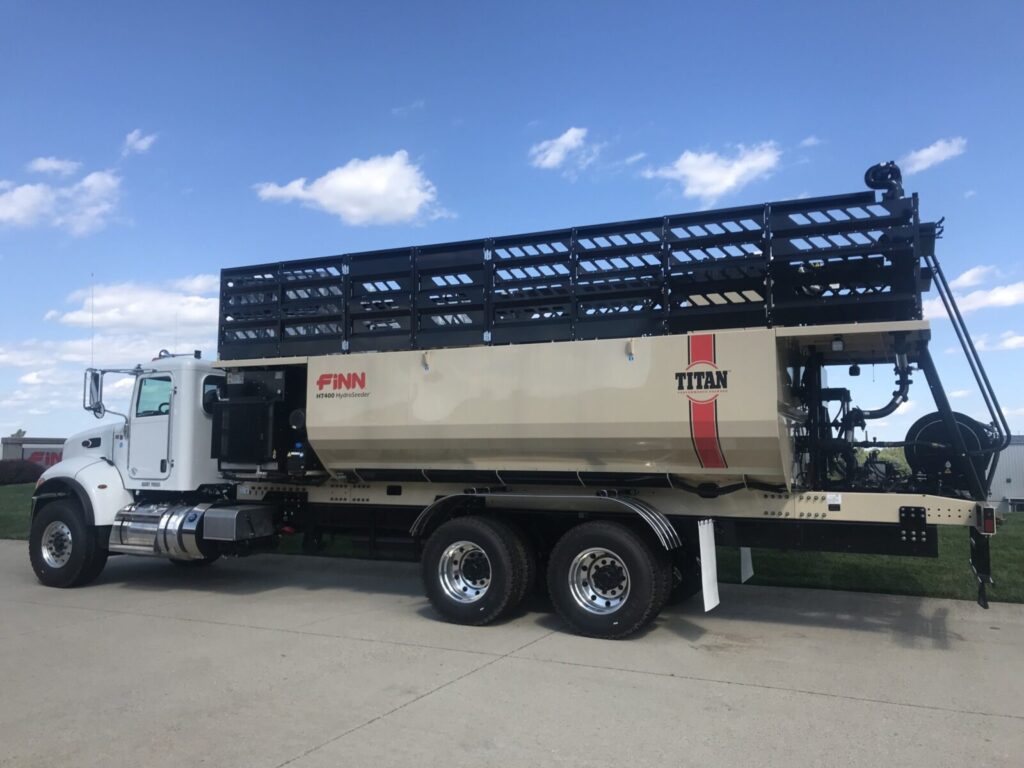

Titan HT330/400 Hydroseeder

Finn Machines

Hyrdroseeders

Finn invented and trademarked the first Hydroseeder® in 1953. Designed to mix and spray a slurry of seed and fertilizer over broad areas, this was more than a product innovation — it was the seed that spawned a new industry of turf and erosion control contractors.

May also be available in our Pre-Owned section, please click here

Specification

POWER	John Deere 4045HFC06 Tier 4 Final Diesel, 173 HP (129kW), industrial water cooled diesel engine. Vibration Isolated. Control panel with digital information display, throttle, pump on/off, horn, agitator speed and direction controls and E-Stop. Additional engine start/stop switch and E-Stop button is located on the bumper.
ENGINE SAFETY SYSTEM	Engine ECU with self-diagnostics, including low oil pressure and high temperature shutoff
TANK SIZE	HT330: 3,350 Gallon (12,681 Liter) Liquid Capacity HT330: 3,000 Gallon (11,356 Liter) Working Capacity HT400: 3,975 Gallon (15,047 Liter) Liquid Capacity HT400: 3,600 Gallon (13,627 Liter) Working Capacity
FUEL TANK CAPACITY	50 Gallon ( 189.3 Liter)
PUMP	Centrifugal: 6″ x 3″ (15.2 cm x 7.6 cm), 530 gpm @ 200 psi, 1.25″ solid clearance Vortex: 6″ x 3″ (15.2 cm x 7.6 cm), 465 gpm @ 150 psi, 3″ solid clearance
PUMP DRIVE	Hydrostatically driven
AGITATION	Twin mechanical agitators with helical paddle orientation and liquid recirculation
AGITATOR DRIVE SYSTEM	Reversible, variable speed hydraulically driven Lower Agitator: 0-150 RPM Upper Agitator: 0-175 RPM
DISCHARGE DISTANCE	Centrifugal: Up to 368 ft. (112m) from discharge tower Vortex: Up to 284 ft. (87m) from discharge tower
MATERIAL CAPACITY	HT330: Granular Solids: 10,000 lbs. (4535.9 kg) HT330: Fiber Mulch: 1,500 lbs. (680.4 kg) HT400: Granular Solids: 12,400 lbs. (5624.5 kg) HT400: Fiber Mulch: 1,800 lbs. (816.5 kg)
MATERIAL CARRYING CAPACITY	HT330: 75 lbs. / sq. ft. (7,200 lbs.) 366 kg / sq. m (3,266 kg) HT400: 75 lbs. / sq. ft. (9,600 lbs.) 366 kg / sq. m (4,354 kg)
NOZZLES	(2) Narrow Fan, (2) Wide Fan, (2) Long Distance
EMPTY WEIGHT	HT330: 14,127 lbs. (6,408 kg)* HT400: 15,075 lbs. (6,838 kg)*
WORKING WEIGHT	HT330: 40,677 lbs. (18,451 kg) HT400: 46,935 lbs. (21,289 kg)
LOADING HATCH	Raised, sealed hatch with 24-1/2″ x 29-1/2″ opening and integrated, pivoted stainless steel bag cutter with safety grate
BALE GRINDER	Agitator with integrated mulch bale grinder for faster material loading
OPTIONAL EQUIPMENT	Stainless Steel Tank and Lids, Stainless Steel Agitator, Hose Reel Package w/ 1-1/4″ Hose, Hose Reel Package w/ 1-1/2″ Hose, Second Boom, Air Flush, Hardened Pump, Additional Fill Port, Rear Spray Bar, Front Flushers, Cab Controls

Note: Weight and specs subject to change after testing.
* Empty weight includes 50 gal. of fuel and all engine and hydraulic fluids
** Working weight includes one full load of fiber mulch and water with no stored materials on deck.

Features and Benefits

Spraying distances of up to 368 feet from boom
Dual boom as an option for spraying on both sides of the unit for hard-to reach areas
Hydraulic hose reel with Reel-In and Reel-Out functionality
Revolutionary integrated bale grinder for faster and more efficient loading
Helical designed agitators improves material movement within the tank for more efficient mixing and circulation
Revolutionary long-life, low maintenance agitator bearings
Interchangeable centrifugal and vortex pump
Centralized lubrication/service points for increased unit serviceability
Larger gates and open-space design dramatically increases the amount of usable storage space on top of the tank
Remote control seamlessly integrated into the unit control system to easily control the pump while working with the hose

As the world leader for over 80 years in the design and manufacture of innovative, quality equipment for the green industry, and as the inventor of the HydroSeeder, FINN Corporation is committed to your complete satisfaction.

More horsepower with high efficiency hydraulic system

173HP Tier IV Final John Deere water cooled, turbo-diesel engine
Self-diagnosing engine including low oil pressure and high temperature shut-off system
Innovative control system, with multi-language capability, to control all machine functions
Electronically controlled hydraulic system to enable maximum performance and productivity
6 x 3 inch, hydrostatically driven 530 gpm centrifugal pump standard and an optional 6 x 3 hydrostatically driven 465 gpm vortex pump
Two (2) heavy duty, reversible and variable speed mechanical agitators with liquid recirculation
Agitator speed and direction control is independent of engine speed for faster loading of materials

More flexibility

Single boom, dual boom or hose application
Mix and spray any material from the heaviest slurry BFM’s, FGM’s, plaster- based additives and lime
Pump and agitator speed independent from engine speed
4,000 or 3,300 gallon tank capacity
Increased deck space with integral tie down points for increased material storage – storage for up to 8 pallets on the HT400
Optional stainless steel tank and agitators
Optional air-flush system available

More versatility and speed

High power agitators for grinding and mixing tough/heavy slurries
Optimized agitator paddle layout for increased material circulation in the tank and reduced potential for air entrainment in the slurry
Optimized 6 inch suction line for faster unloading – ideal for re- vegetation using aircraft or large area coverage
Why Titan? Best performance, best productivity and ultimate convenience of any unit on the market.
